LINCH PIN

CODE	A	B	C	D	E
CI 4535	4.5	28.6	35	45	3
CI 4540	4.5	33	40	48	3
CI 6045	6	36.5	45	54	3.2
CI 6070	6	60	70	80	3.5
CI 7045	7	36.5	45	55	3.3
CI 8045	8	36.5	45	54	3.3
CI 8070	8	60	70	80	3.5
CI 9045	9	36.5	45	56	3.3
CI 1045	10	36.5	45	56	3.5
CI 1051	10	42	51	62	3.5
CI 1145	11	36.5	45	56	3.5
CI 1151	11	39	51	61	3.5
CI 1245	12	36.5	45	56	3.5
CI 1045-R	10	36.5	45	56	3.5

LINCH PIN PEAR TYPE

CODE	A	B	C	D	E
CI 6045	6	36	45	54	3.2
CI 8045	8	36	45	54	3.2
CI 1045	10	36	45	56	3.2
CI 1145	11	36	45	56	3.2

LINCH PIN BLACK RING HEAVY DUTY

CODE	A	B	C	D	E
CI 6045 HD	6	36.5	45	54	3.5 BLK
CI 1151 HD	11	39	51	61	4.5 BLK

LINCH PIN

CODE	A	B	C	D	E
CI 4532	4.5	32	25	31.00	2.50
CI 5542	5.5	42	32	44.80	3.60
CI 7542	7.5	42	32	44.80	3.60
CI 9545	9.5	45	32	44.80	3.60
CI 1145	11	45	32	44.80	3.60
CI 1155	11	55	45	52.00	4.00
CI 1660	16	60	45	52.00	4.00



LINCH PIN

CODE	DIA	TYPE
CI 85	8.5	A
CI 105	10.5	A
CI 11	11	B
CI 155	51.5	C

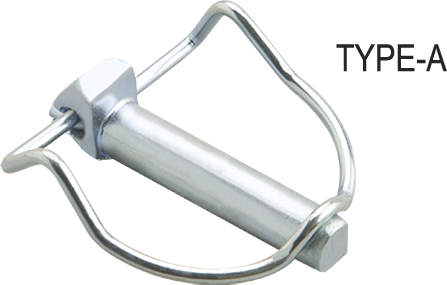

BUTTERFLY LINCH PIN

CODE	DIA	TYPE
CI 11	11	A

PIPE LINCH PIN

CODE	A	B	C	D
CI04540	4.5	40	18	3
CI0632	6	32	18	3
CI0640	6	40	18	3
CI0645	6	45	22	3
CI0840	8	40	18	3
CI0845	8	45	22	3
CI0850	8	50	25	3
CI0860	8	60	28	3
CI1040	10	40	25	3
CI1050	10	50	25	3
CI1060	10	60	28	3
CI1070	10	70	28	3

LINCH PIN FOR PIPE

CODE	A	B
KPLP1451BR	14	51

PIPE LINCH PIN

CODE	A	B	C	D
CI04540	4.5	40	18	3
CI0632	6	32	18	3
CI0640	6	40	18	3
CI0645	6	45	22	3
CI0840	8	40	18	3
CI0845	8	45	22	3
CI0850	8	50	25	3
CI0860	8	60	28	3
CI1040	10	40	25	3
CI1050	10	50	25	3
CI1060	10	60	28	3
CI1070	10	70	28	3

LINCH PIN WITH CHAIN

CODE

42370380

CHAIN LENGTH – 200.0mm
LINCH PIN SIZE – 11X45

CODE

42390070

CHAIN LENGTH – 226.0mm
LINCH PIN SIZE – 11X45
