QUICK RELEASE COUPLERS

Plug with Female Pipe Thread

PART NO	A (Thread Size)	B (Thread Length)	C (Outer Dia.)	D (Length)	E (Across Flat)
CI001	1/2″ BSP	17.00	Ø20.52	46.00	27.00.
CI002	1/2″ NPT	17.00	Ø20.52	46.00	27.00
CI003	3/8″ BSP	13.00	Ø17.25	38.00	22.00
CI004	3/8″ NPT	13.00	Ø17.25	38.00	22.00
CI005	3/4″ BSP	19.00	Ø29.05	55.00	36.00
CI006	3/4″ NPT	19.00	Ø29.05	55.00	36.00

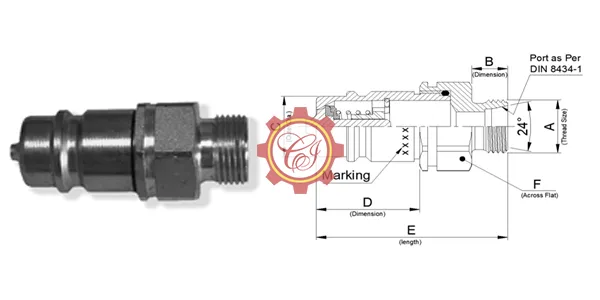

1/2" Plug With Male Thread as per 8434-1

PART NO	A (Thread Size)	B (Dimension)	C (Outer Dia.)	D (Dimension)	E (Length)	F (Across Flat)
CI001	M14x1.5	10.00	Ø20.52	32.00	58.00.	27.00.
CI002	M16x1.5	11.00	Ø20.52	32.00	59.00	27.00
CI003	M18x1.5	11.00	Ø20.52	32.00	59.00	27.00
CI004	M20x1.5S	12.00	Ø20.52	32.00	60.00	27.00
CI005	M22x1.5	12.00	Ø20.52	32.00	60.00	27.00
CI006	1/2″ BSP	11.00	Ø20.52	32.00	59.00	27.00

1/2" Plug with Male Thread as per 8434-1 - Bulkhead

PART NO	A (Thread Size)	B (Thread Length)	C (Outer Dia.)	D (Dimension)	E (Length)	F (Across Flat)
CI001	M18x1.5	36.00	Ø20.52	32.00	84.00.	27.00.
CI002	M20x1.5S	38.00	Ø20.52	32.00	86.00	27.00
CI003	M22x1.5	38.00	Ø20.52	32.00	86.00	27.00

1/2" Plug With Male Thread as per DIN 7631

PART NO	A (Thread Size)	B (Thread Length)	C (Outer Dia.)	D (Length)	E (Across Flat)	F (Across Flat)
CI001	1/2″ BSP	13.50	Ø20.52	32.00	62.00	27.00
CI002	M20x1.5	13.50	Ø20.52	32.00	61.50.00	27.00

1/2" Plug With Female Metric Thread

PART NO	A (Thread Size)	B (Thread Length)	C (Outer Dia.)	D (Dimension)	E (Length)	F (Across Flat)
CI001	M22x1.5	17.00	Ø20.52	32.00	61.00	27.00

1/2" Plug With Female Metr1/2" Plug With Male UNF Threadic Thread

PART NO	A (Thread Size)	B (Thread Length)	C (Outer Dia.)	D (Dimension)	E (Length)	F (Across Flat)
CI001	7/8-14 UNF	19.30	Ø20.52	32.00	67.00	27.00

1/2"Plug With Female UNF Thread

PART NO	A (Thread Size)	B (Thread Length)	C (Outer Dia.)	D (Dimension)	E (Length)	F (Across Flat)
CI001	3/8-14 UNF	15.00	Ø20.52	32.00	66.00	27.00

1/2"Push Pull Socket with Female Pipe Thread

PART NO	A (Thread Size)	B (Thread Length)	C (Outer Dia.)	D (Dimension)	E (Length)	F (Across Flat)
CI001	1/2″ BSP	17.00	Ø38.00	41.00	74.00	30.00
CI002	1/2″NPTP	17.00	Ø38.00	41.00	74.00.	30.00.

1/2" Push Pull Socket with Male Thread as per 8434-

PART NO	A (Thread Size)	B (Thread Length)	C (Outer Dia.)	D (Dimension)	E (Length)	F (Across Flat)
CI001	M14x1.5	10.00	Ø38.00	41.00	67.00	30.00
CI002	M16x1.5	11.00	Ø38.00	41.00	68.00	30.00
CI003	M18x1.5	11.00	Ø38.00	41.00	68.00.	30.00.
CI004	M20x1.5S	12.00	Ø38.00	41.00	69.00	30.00
CI005	M22x1.5	12.00	Ø38.00	41.00	69.00	30.00

1/2" Push Pull Socket with Male Thread as per 8434-1 Bulkhead

PART NO	A (Thread Size)	B (Thread Length)	C (Outer Dia.)	D (Dimension)	E (Length)	F (Across Flat)
CI001	M18x1.5	36.00	Ø38.00	41.00	93.00	30.00
CI002	M22x1.5	17.00	Ø38.00	41.00	95.00.	30.00.

Sleeve Retraction Socket with Female Pipe Thread

PART NO	A (Thread Size)	B (Thread Length)	C (Outer Dia.)	D outerdia	E (Length)	F (Across Flat)
CI001	1/2″ BSP	17.00	Ø30.00	Ø30.00	67.20	32.00
CI002	1/2″NPT	17.00	Ø30.00	Ø38.00<	67.20	32.00
CI003	3/8″BSP	13.00	Ø24.00	Ø38.00	56.00.	27.00.
CI004	3/8″NPT	13.00	Ø24.00	Ø38.00	56.00.	27.00.
CI005	3/4″ BSP	19.00	Ø36.50	Ø38.00	83.00.	38.00.
CI006	3/4″NP	19.00	Ø36.50	Ø38.00	83.00.	38.00.

1/2" Sleeve Retraction Socket with Male Thread as per 8434-1

PART NO	A (Thread Size)	B (Thread Length)	C (Outer Dia.)	D Length	E (Across Flat)
CI001	M14x1.5	10.00	Ø38.00	56.50	27
CI002	M16x1.5	11.00	Ø38.00	57.50	27.00
CI003	M18x1.5	11.00	Ø38.00	57.50	27.00
CI004	M20x1.5S	12.00	Ø38.00	58.50<	27.00
CI005	3/4″ BSP	12.00	Ø38.00	58.50.	27.00.
CI006	1/2″BSP	11.00	Ø38.00	57.50.	27.00.

1/2"Sleeve Retraction Socket with Male Thread as per 8434-1-Bulkhead

PART NO	A (Thread Size)	B (Dimension)	C (Outer Dia.)	D (Length)	F (Across Flat)
CI001	M18x1.5	36.00	Ø38.00	82.50.00	27.00
CI002	M20x1.5S	38.00	Ø38.00	84.50.00	27.00
CI003	M20x1.5S	38.00	Ø38.00	84.50.00	27.00

1/2" Sleeve Retraction Socket With Male Thread as per DIN 7631

PART NO	A (Thread Size)	B (Dimension)	C (Outer Dia.)	D (Length)	F (Across Flat)
CI001	1/2″BSP	13.50	Ø38.00	70.00	27.00
CI002	M20x1.5	13.50	Ø38.00	69.50	27.00

1/2" Sleeve Retraction Socket With Female Metric Thread

PART NO	A (Thread Size)	B (Dimension)	C (Outer Dia.)	D (Length)	F (Across Flat)
CI001	M22x1.5	17.00	Ø38.00	69.00	27.00

1/2" Sleeve Retraction Socket With Male UNF Thread

PART NO	A (Thread Size)	B (Dimension)	C (Outer Dia.)	D (Length)	F (Across Flat)
CI001	7/8-14 UNF	19.30	Ø38.00	75.00	27.00

1/2" Sleeve Retraction Socket With With Female UNF Thread

PART NO	A (Thread Size)	B (Dimension)	C (Outer Dia.)	D (Length)	F (Across Flat)
CI001	7/8-14 UNF	15.00	Ø38.00	74.00	27.00
