TOP LINK PIN

TOP LINK PIN

CODE	A	B	C	D	E	F	G
CI12040	12	40	15	15	11	55	6.3
CI12080	12	80	15	15	11	95	6.3
CI14040	14	40	15	17	12	55	8.3
CI14082	14	82	15	17	12	97	8.3
CI16040	16	40	15	20	13	55	8.3
CI16045	16	45	15	20	13	60	8.3
CI16070	16	70	15	20	13	85	8.3
CI16076	16	76	15	20	13	91	8.3
CI16082	16	82	15	20	13	97	8.3
CI16086	16	86	15	20	13	101	8.3
CI16096	16	96	15	20	13	111	8.3
CI16100	16	100	15	20	13	115	8.3
CI16120	16	120	15	20	13	135	8.3
CI16125	16	125	15	20	13	140	8.3
CI16146	16	146	15	20	13	161	8.3
CI19046	19	46	17	25	18	61	12
CI19052	19	52	17	25	18	67	12
CI19065	19	65	17	25	18	80	12
CI19070	19	70	17	25	18	85	12
CI19076	19	76	17	25	18	91	12
CI19086	19	86	17	25	18	101	12
CI19092	19	92	17	25	18	107	12
CI19096	19	96	17	25	18	111	12
CI19103	19	103	17	25	18	118	12
CI19106	19	106	17	25	18	121	12
CI19110	19	110	17	25	18	125	12
CI19120	19	120	17	25	18	135	12
CI19125	19	125	17	25	18	140	12
CI19145	19	145	17	25	18	160	12
CI19165	19	165	17	25	18	180	12
CI22055	22	55	17	28	21	70	12
CI22076	22	76	17	28	21	91	12
CI22085	22	85	17	28	21	100	12
CI22095	22	95	17	28	21	110	12
CI22100	22	100	17	28	21	115	12
CI22106	22	106	17	28	21	121	12
CI22110	22	110	17	28	21	125	12
CI22125	22	125	17	28	21	140	12
CI22145	22	145	17	28	21	160	12
CI22155	22	155	17	28	21	170	12

TOP LINK PIN

CODE	A	B	C	D	E	F	G
CI22165	22	165	17	28	21	180	12
CI22185	22	185	17	28	21	200	12
CI22205	22	205	17	28	21	220	12
CI25076	25	76	20	31	24	91	12
CI25085	25	85	20	31	24	100	12
CI25095	25	95	20	31	24	110	12
CI25105	25	105	20	31	24	120	12
CI25110	25	110	20	31	24	125	12
CI25116	25	116	20	31	24	131	12
CI25126	25	126	20	31	24	141	12
CI25136	25	136	20	31	24	151	12
CI25145	25	145	20	31	24	160	12
CI25160	25	160	20	31	24	175	12
CI25180	25	180	20	31	24	195	12
CI25185	25	185	20	31	24	200	12
CI25205	25	205	20	31	24	220	12
CI28085	28	85	20	34	27	100	12
CI28095	28	95	20	34	27	110	12
CI28103	28	103	20	34	27	118	12
CI28116	28	116	20	34	27	131	12
CI28125	28	125	20	34	27	140	12
CI28130	28	130	20	34	27	145	12
CI28145	28	145	20	34	27	160	12
CI28152	28	152	20	34	27	167	12
CI28160	28	160	20	34	27	175	12
CI28180	28	180	20	34	27	195	12
CI28205	28	205	20	34	27	220	12
CI30150	30	150	20	36	32	168	12
CI32096	32	96	19	38	31	121	12
CI32105	32	105	20	38	32	152	12
CI32116	32	116	19	38	31	134	12
CI32120	32	120	20	38	30	139	12
CI32125	32	125	20	38	32	163	12
CI32136	32	136	20	38	32	175	12
CI32150	32	150	21	38	32	168	12
CI32176	32	176	19	38	31	194	12
CI36105	36	105	22	42	35	125	12
CI36157	36	157	22	42	35	177	12
CI37125	37	125	25	46	39	140	12
CI37145	37	145	25	46	39	165	12
CI37165	37	165	25	46	39	185	12
CI37175	37	175	25	46	39	190	12
CI45175	45	175	30	54	47	195	14

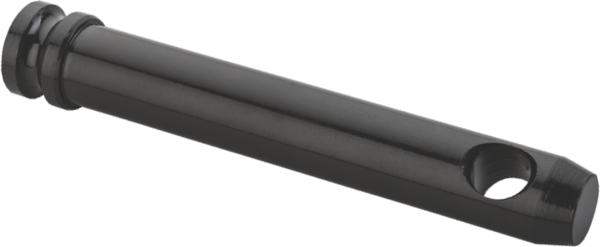

TOP LINK PIN CONCAVE HEAD

CODE	A	B
CI 3/4-4.00 CH	3/4″	4.0″
CI 3/4-5.50 CH	3/4″	5.5″
CI 7/8-4.50 CH	7/8″	4.5″
CI 7/8-5.50 CH	7/8″	5.5″
CI 1-4.50 CH	1″	4.5″
CI 1-5.50 CH	1″	5.5″
CI 1-6.00 CH	1″	6.0″
CI 1-6.50 CH	1″	6.5″
CI 1-1/8-5.50 CH	1-1/8″	5.5″
CI 1-1/8-6.50 CH	1-1/8″	6.5″
CI 1-1/8-4.50 CH	1-1/8″	4.5″

DOUBLE IMPLEMENT MOUNTING PIN (TYPE- A)

CODE	A	B	C	D	E	F	G	H	I	J
CI2219	28	22	22	40	67	115	30	200	12	6.5
CI2520	28	25	22	40	67	115	30	200	12	6.5

DOUBLE IMPLEMENT MOUNTING PIN (TYPE- B)

CODE	A	B	C	D	E	F	G
CI2510	25	19	62	96	22	212	12
CI2511	25	19	70	66	18	170	6.5
CI2509	25	19	80	70	20	210	12
CI2812	28	22	75	75	20	200	12
CI2813	28	22	80	70	20	210	12
CI2814	28	22	80	90	20	230	12
CI3216	32	25	81	115	26	250	12
CI3617	36.5	28	81	150	26	277	12
CI3618	36.5	28	80	150	28	290	12
