Tractor Leveling Assembly

Tractor Leveling Assembly

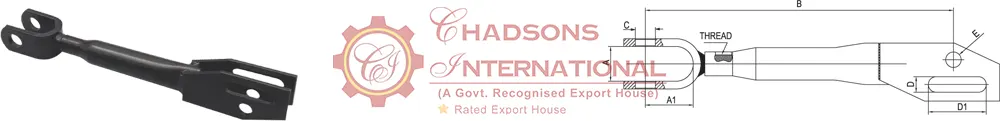

Top Link Assembly (Inch)

CODECAT d1 -d2PIPE L1THREAD DMIN.MAX.
CI0010 – 07.1/2”3 / 4 UNC11”16.3/8”
CI0020 – 09.3/4/”3 / 4 UNC13.3/8”18.5/8”
CI0031 – 17”1.1/8 UNC11.5/8”14.3/4”
CI0041 – 27”1.1/8 UNC11.3/4”15”
CI0052 – 27”1.1/8 UNC12”15.1/8”
CI0061 – 19”1.1/8 UNC13.5/8”18.3/4”
CI0071 – 29”1.1/8 UNC13.3/4”19”
CI0082 – 29”1.1/8 UNC14”19.1/4”
CI0091 – 111.1/4”1.1/8 UNC16”24”
CI00101 – 211.1/4”1.1/8 UNC16.3/8”24.1/4”
CI00112 – 211.1/4”1.1/8 UNC16.1/2”24.3/8”
CI00121 – 113”1.1/8 UNC17.1/2”26.3/4”
CI00131 – 213”1.1/8 UNC17.3/4”27”
CI00142 – 213”1.1/8 UNC18.1/8”27.1/8”
CI00151 – 114.1/2”1.1/8 UNC19”27”
CI00161 – 214.1/2”1.1/8 UNC19.1/2”27.1/8”
CI00172 – 214.1/2”1.1/8 UNC20”31.1/2”
CI00181 – 116”1.1/8 UNC20.1/2”28”
CI00191 – 216”1.1/8 UNC20.3/4”28.3/8”
CI00202 – 216”1.1/8 UNC21”32.1/2”
CI00211 – 117.1/4”1.1/8 UNC21.5/8”29.3/8”
CI00221 – 217.1/4”1.1/8 UNC22”29.1/2”
CI00232 – 217.1/4”1.1/8 UNC22.1/4”33.7/8”
CI00241 – 120”1.1/8 UNC24.3/8”32”
CI00251 – 220”1.1/8 UNC24.3/4”32.1/4”
CI00262 – 220”1.1/8 UNC25”36.3/8”
CI00271 – 124”1.1/8 UNC28.1/2”36”
CI00281 – 224”1.1/8 UNC28.3/4”36.1/4”
CI00292 – 224”1.1/8 UNC28.7/8”40.1/2”
CI00302 – 215”1.1/4 UNC20”30.7/8”
CI00312 – 219”1.1/4 UNC24”35.1/4”

Top Link Assembly (Metric)

CODECAT d1 -d2PIPE L1THREAD DMIN.MAX.
THREAD M 22 X 2.5
CI0011 – 1180M22X2.5290440
CI0021 – 1220M22X2.5330480
CI0031 – 1230M22X2.5340490
CI0041 – 1300M22X2.5410560
CI0051 – 1320M22X2.5430580
THREAD M 24 X 3
CI0061 – 1120M24X3230410
CI0071 – 1140M24X3250430
CI0081 – 1150M24X3260440
CI0091 – 1165M24X3275445
CI00101 – 1180M24X3290470
CI00111 – 1200M24X3310490
CI00121 – 1230M24X3340520
CI00131 – 1250M24X3360540
CI00141 – 1270M24X3380560
CI00151 – 1300M24X3410590
CI00161 – 1330M24X3440620
CI00171 – 1370M24X3470650
THREAD M 27 X 3
CI00181-1275M27X3395625
CI00192-2275M27X3395645
CI00201-1320M27X3440670
CI00211-2320M27X3440680
CI00222-2320M27X3440690
CI00231-1350M27X3470700
CI00241-2350M27X3470710
CI00252-2350M27X3470720
CI00261-1380M27X3500730
CI00271-2380M27X3500740
CI00282-2380M27X3500750
CI00291-1400M27X3520750
CI00301-2400M27X3520760
CI00312-2400M27X3520770
CI00321-1430M27X3550780
CI00331-2430M27X3550790
CI00342-2430M27X3550800
CI00351-1450M27X3570800
CI00361-2450M27X3570800
CI00372-2450M27X3570810
CI00381-1470M27X3590820
CI00391-2470M27X3590830
CI00402-2470M27X3590840
CI00411-1500M27X3620850
CI00421-2500M27X3620860
CI00432-2500M27X3620870
CI00441-1550M27X3670900
CI00451-2550M27X3670910
CI00462-2550M27X3670920
CI00472-2570M27X3670940
